Product Detail
Product Parameter

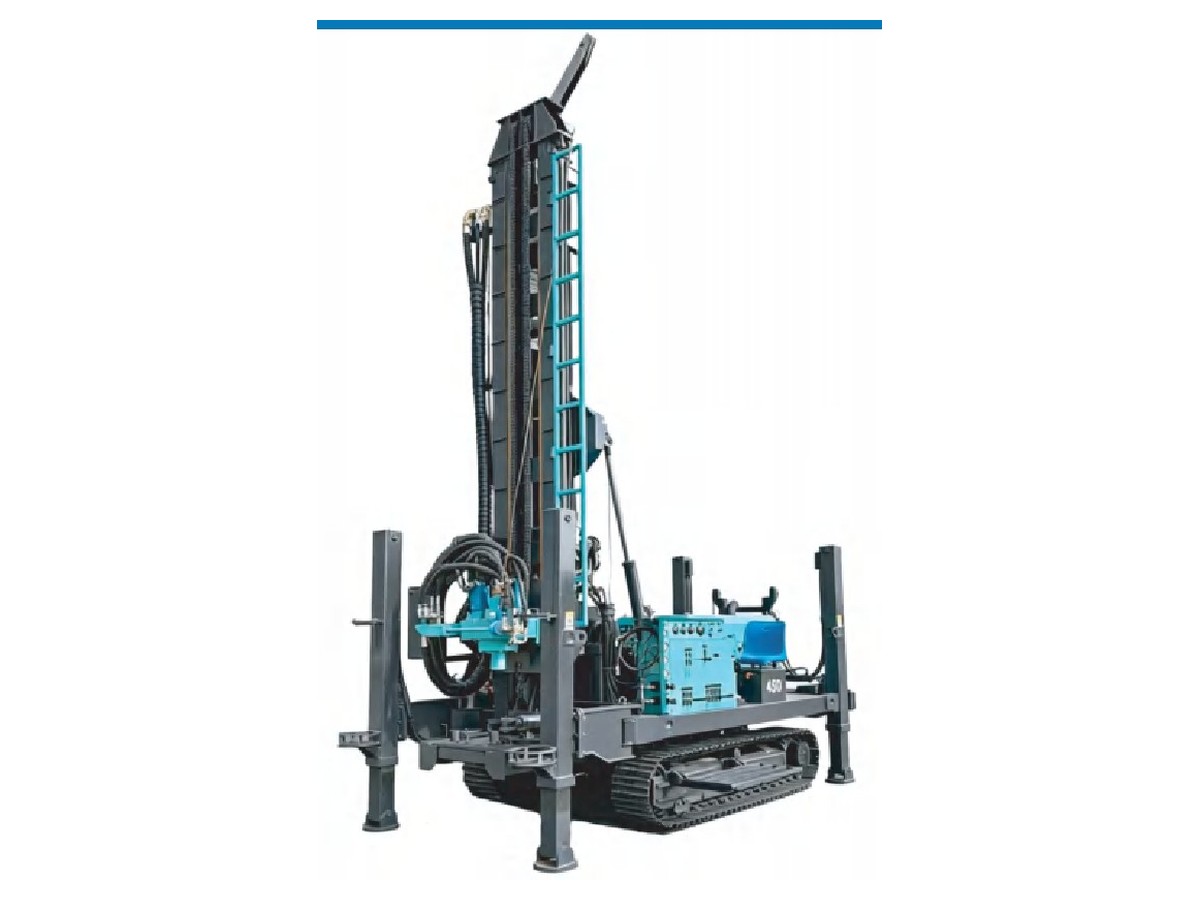

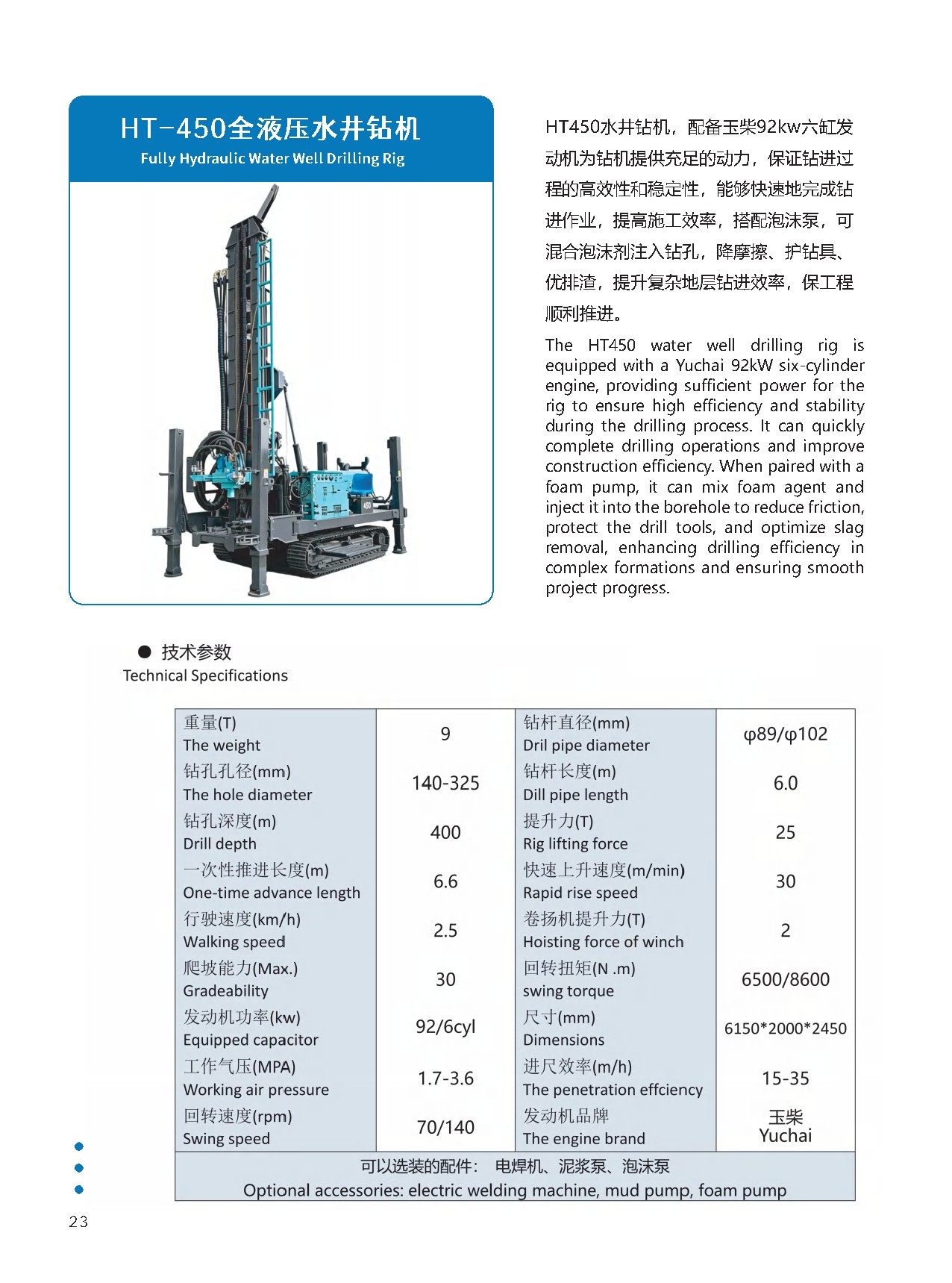

The HT450 water well drilling rig isequipped with a Yuchai 92kW six-cylinderengine, providing sufficient power for therig to ensure high efficiency and stabilityduring the drilling process. It can quicklycomplete drilling operations and improveconstruction efficiency. When paired with afoam pump, it can mix foam agent andinject it into the borehole to reduce friction,protect the drill tools, and optimize slagremoval, enhancing drilling efficiency incomplex formations and ensuring smoothproject progress.
| Specification | Value |
|---|---|
| The weight | 9 |
| The hole diameter | 140-325 |
| Drill depth | 400 |
| One-time advance length | 6.6 |
| Walking speed | 2.5 |
| Gradeability | 30 |
| Equipped capacitor | 92/6cyl |
| Working air pressure | 1.7-3.6 |
| Swing speed | 70/140 |
| Dril pipe diameter | φ89/φ102 |
| Dill pipe length | 6.0 |
| Rig lifting force | 25 |
| Rapid rise speed | 30 |
| Hoisting force of winch | 2 |
| swing torque | 6500/8600 |
| Dimensions | 6150*2000*2450 |
| The penetration efficiency | 15-35 |
| The engine brand | 玉柴 Yuchai |
| Optional accessories: electric welding machine, mud pump, foam pump | - |
